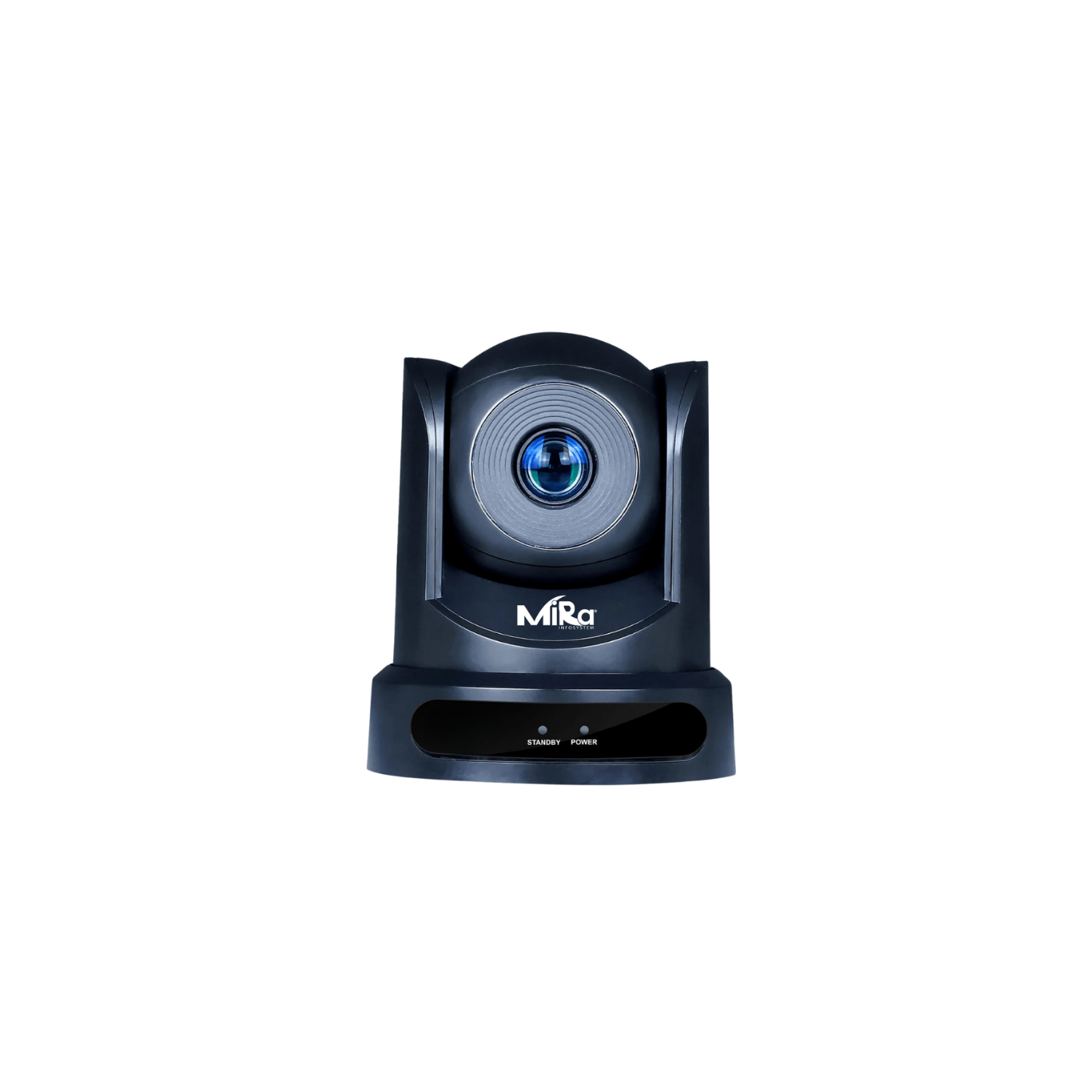

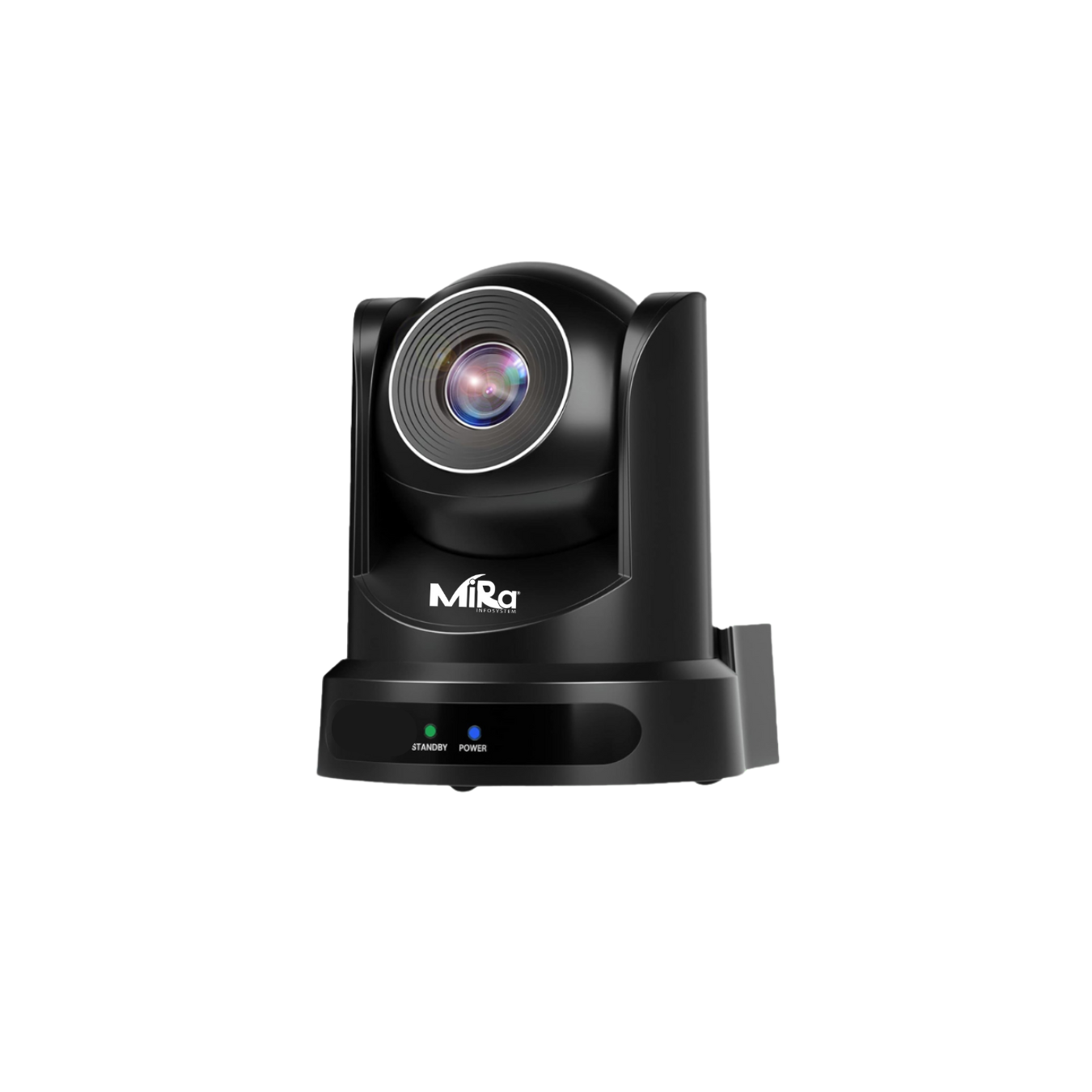

PTZ Camera

A versatile PTZ camera with 1080P resolution, 10x optical zoom, and advanced features for professional video applications. Supports multiple video formats and interfaces for seamless integration.

Download Brochure

Product Features

Versatile PTZ camera with 1080P resolution, 10x optical zoom, and superior performance for various applications.

1080P Resolution

1080P @ 30fps, 720P for high-definition video

10x Optical Zoom

10X (f 5.13mm ~ 46.3mm, F1.8 ~ F2.8) with 16X digital zoom

Low Illumination

0.05 Lux @ (F1.8, AGC ON) for excellent low-light performance

High Video S/N

≥55dB with 2D&3D Digital Noise Reduction

Multiple Interfaces

USB 2.0, RS232

255 Presets

255 preset positions for flexible positioning

Wide OS Support

Windows, Mac OS X, Linux, Android compatibility

Wide Temperature Range

-10 ° C ~ 40 ° C operating temperature

Technical Specifications

Model	MIS-U2-10X
Type	PTZ Camera
Resolution	1080P @ 30fps, 720P
Video Format	H.264 AVC, H.264 SVC, MJPEG
Optical Zoom	10X (f 5.13mm ~ 46.3mm, F1.8 ~ F2.8)
Digital Zoom	16X
Minimal Illumination	0.05 Lux @ (F1.8, AGC ON)
White Balance	Automatic, one-click, manual
Backlight Compensation	Support
Video S/N	≥55dB
Digital Noise Reduction	2D&3D Digital Noise Reduction
Sensor	1/2.7”, CMOS, Effective Pixel: 2.07M
PAN Range	±170°
Tilt Range	-30° ~ +90°
Horizontal Angle of view	58.5° ~ 6.5°
Vertical Angle of view	35.1° ~ 3.6°
Input/ Output Interface	USB 2.0, RS232
Operating System Support	Windows, Mac OS X, Linux, Android
No. of Preset	255 Preset
Input Voltage	DC 12V
Power Consuption	12W (Max)
Operating Temperature	-10 ° C ~ 40 ° C
Dimension (W X H X D)	141.3mm x 153mm x 163.6mm
Net Weight	1.15 Kg
