OPSPC-i3000/i5000/i7000

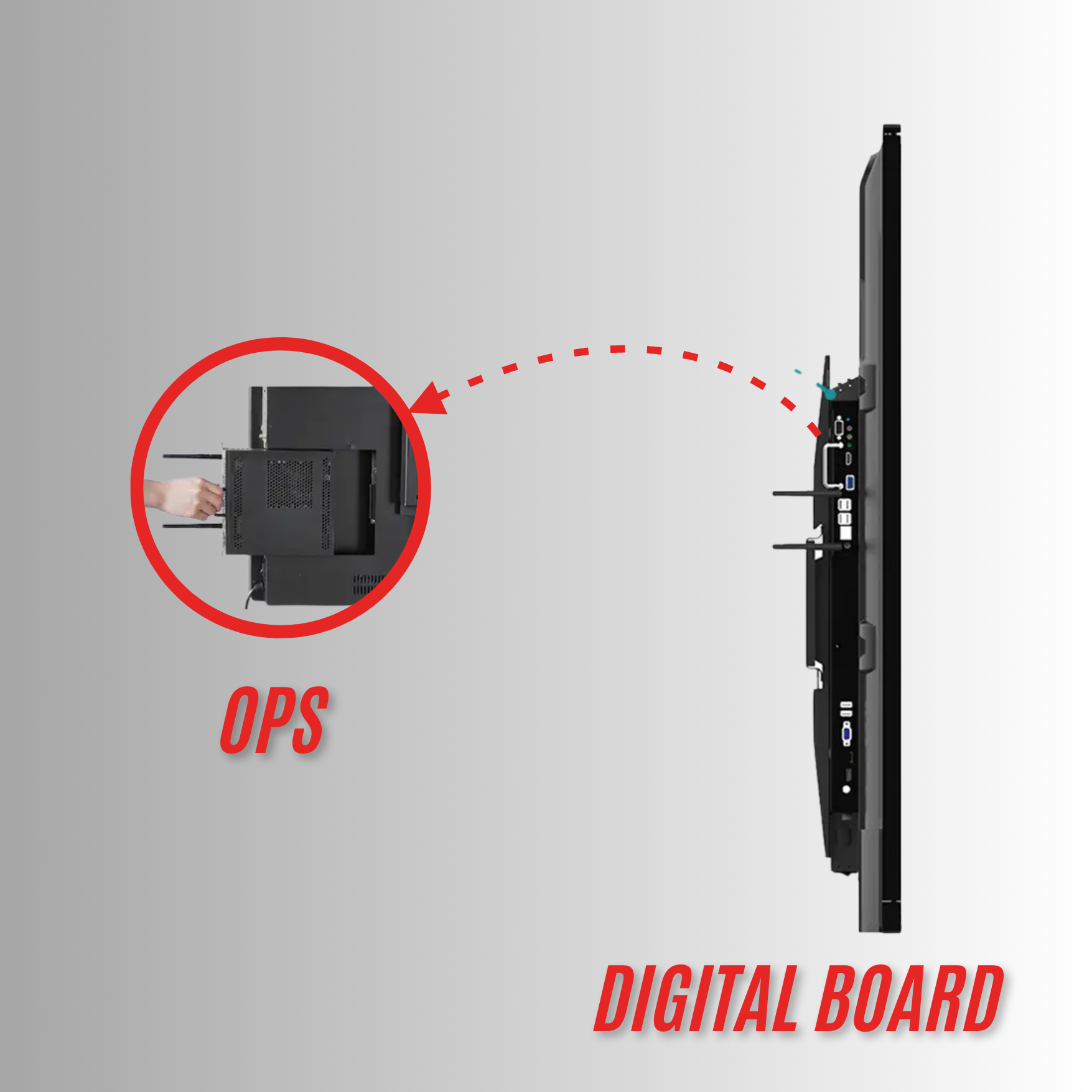

The OPSPC-i3000/i5000/i7000 is a high-performance Open Pluggable Specification (OPS) computing module designed for digital signage and interactive displays. Available with Intel® Core™ i3/i5/i7 processors from 10th, 11th, and 12th generations, this OPS module delivers powerful computing capabilities in a compact, standardized form factor.

With support for up to 32GB DDR4 memory, multiple storage options, and comprehensive connectivity features, this OPS module is ideal for demanding digital signage applications and interactive display solutions.

* Price excludes taxes, shipping, installation, setup, service fees, and additional charges. Contact sales for a customized quote.

Product Features

A powerful and versatile OPS computing module designed for digital signage and interactive displays, featuring advanced Intel® processors and comprehensive connectivity options.

Intel® Core™

Powerful Intel core i3/ i5 / i7 Processor for smooth performance

Expandable Memory

Up to 32GB DDR4 RAM with dual SO-DIMM slots

Dual Storage

M.2 SSD and 2.5" SATA storage options

Gigabit LAN

High-speed network connectivity

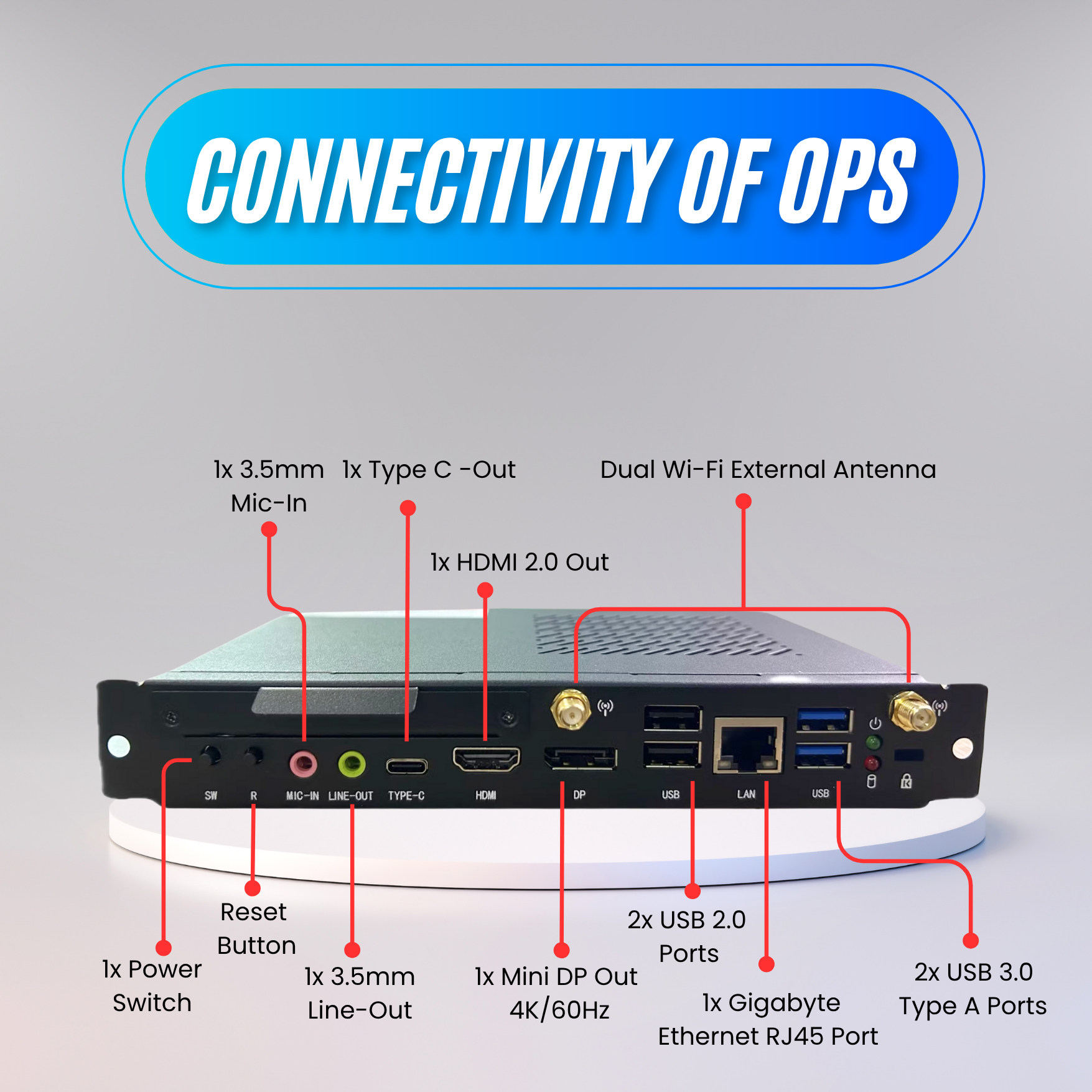

Multiple Ports

2x USB 2.0 | 2x USB 3.0 Ports and Type-C connectivity

Wireless Connectivity

802.11bgn Wi-Fi and Bluetooth support

4K Display Support

DP/HDMI with 4K60Hz capability

Certified Quality

Multiple international certifications

Technical Specifications

Model	OPSPC-i3000/i5000/i7000
Generation	10th / 11th / 12th Generation
Processor	Intel® Core™ i3 / i5 / i7

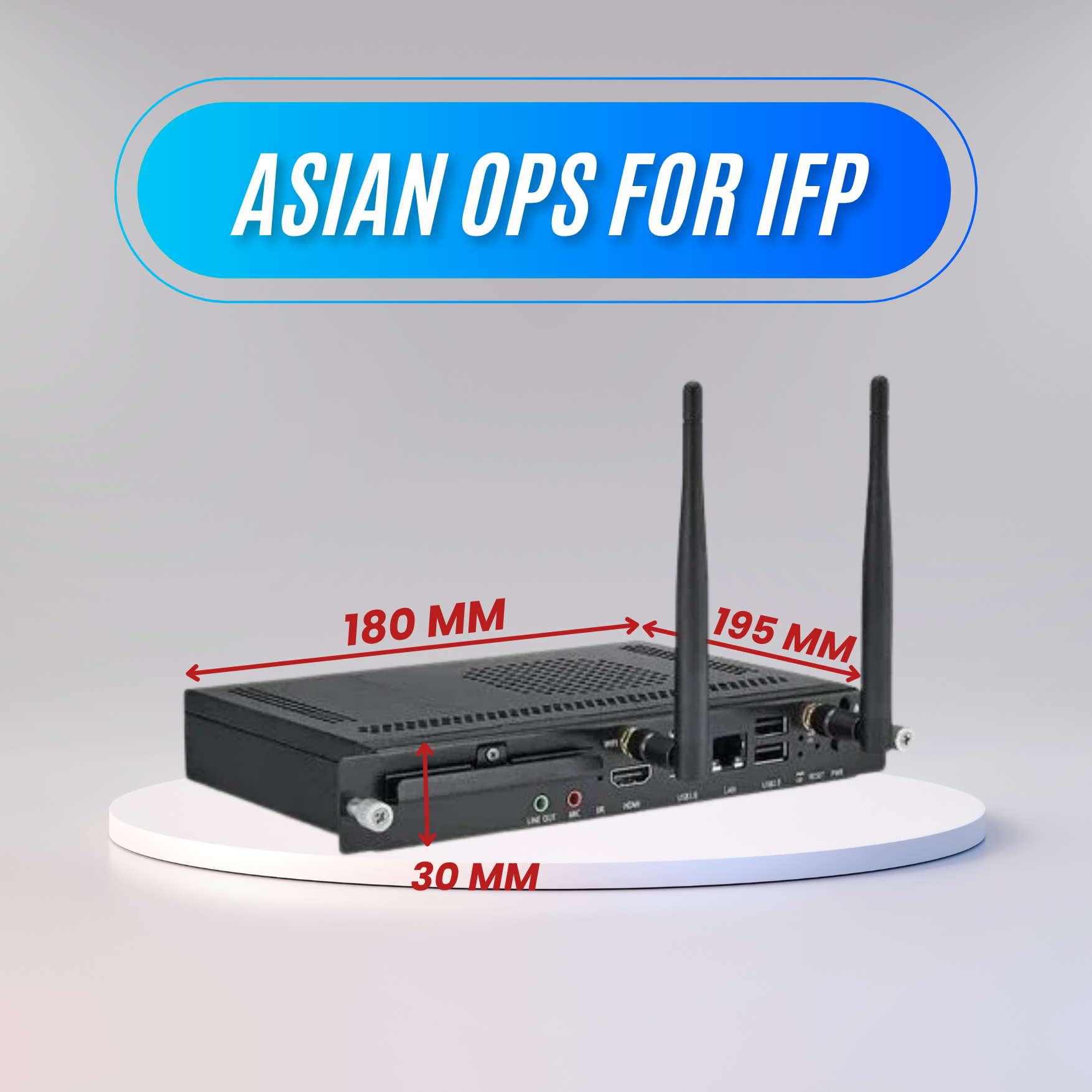

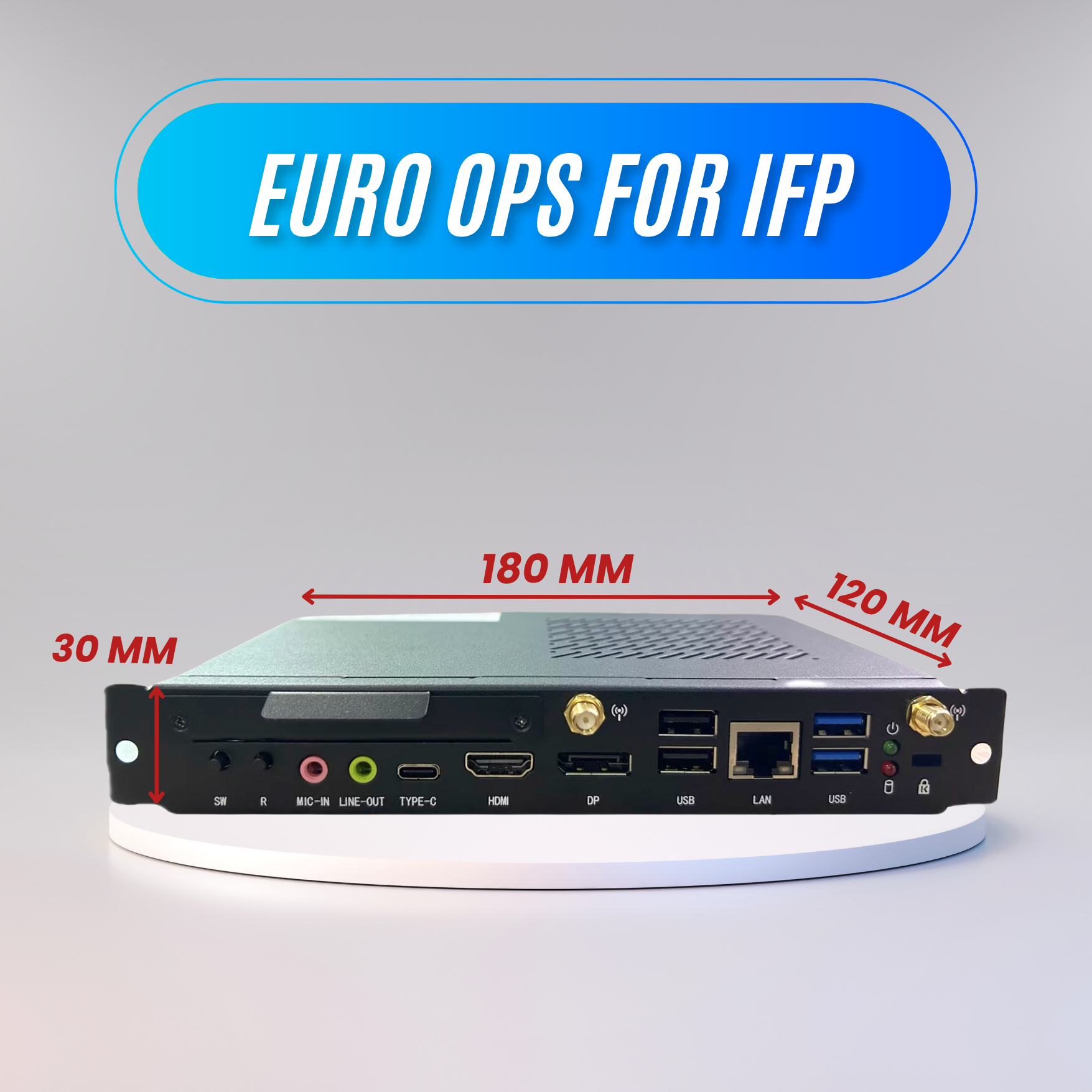

Casting Type	Asian / European
Memory	2 x SO-DIMM DDR4 MAX 32GB
Graphics	On Board Intel® UHD Graphics
Primary Storage	1 x M.2 2280 SSD
Secondary Storage	1 x 2.5" SATA HDD/SDD
LAN	1 x RJ45 10/100/1000 Gigabit LAN
USB Ports	2x USB 2.0 Ports \| 2x USB 3.0 Ports
Type C Port	1 x Type C
DIMM Slots	2 Slots
Display Port	DP/ HDMI / Rear 80 Pin Support 4K60Hz
Audio	AUDIO IN + OUT
Wi-Fi	802.11bgn + BT
Socket Pin	JAE 80 Pin (1 x HDMI 2.0 out, 3 x USB2.0 TTL)
Power	19V-5AMP DC IN
Operating System	Windows 10 / Windows 11 / Ubuntu
Certifications	BIS, CE, FCC, ROHS, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
