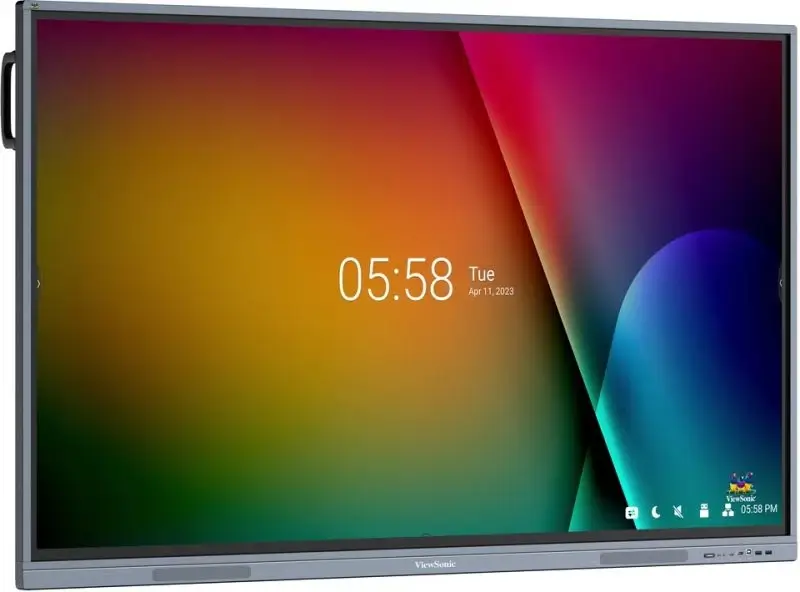

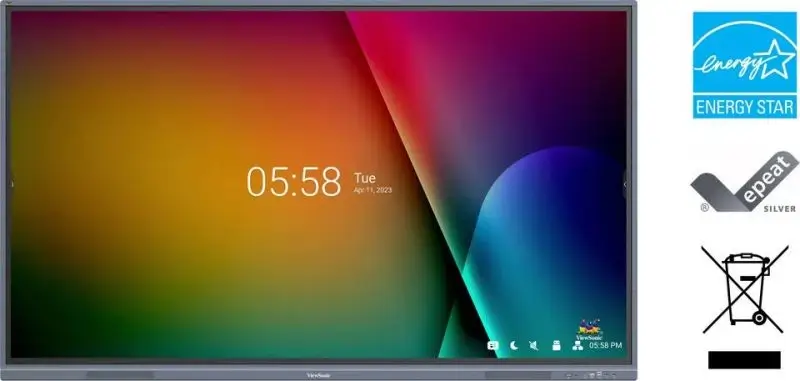

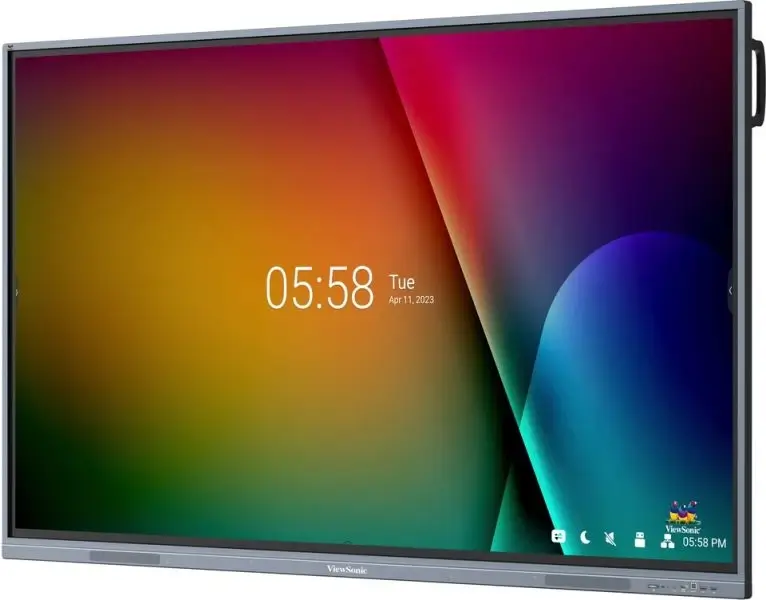

The ViewBoard IFP33 Series harmonizes a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colors, enhanced contrast, and reduced glare.
The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience.
* Price excludes taxes, shipping, installation, setup, service fees, and additional charges. Contact sales for a customized quote.
A state-of-the-art interactive flat panel designed for modern educational institutions, featuring advanced technology for interactive and engaging learning experiences.
Latest Android operating system for smooth performance
Crystal clear 3840x2160 pixels display
40-point touch for seamless collaboration
16W x 2 front-facing speakers for immersive audio
DDR4 memory for smooth multitasking
Ample space for apps and content
ARM Cortex A55 for powerful performance
9H hardness for durability and reduced reflections
| Panel Size | 75" |
| Panel Type | TFT LCD Module with DLED Backlight. IPS |
| Display Area (mm) | 1649.664(H) × 927.936(V) (74.6" diagonal) |
| Aspect Ratio | 16:9 |
| Resolution | UHD 3840x2160(Pixels) |
| Colors | 1.07B colors |
| Brightness | 450 nits |
| Contrast Ratio | 5000:1 (max. with DCR enabled) |
| Response Time | 8ms |
| Viewing Angles | H=178, V=178 |
| Backlight Life | 50,000 Hours (Min.) |
| Surface Treatment | Hardness: 9H Anti-glare coating |
| Orientation | Landscape |
| Processor | Quad-core ARM Cortex (A55*4) |
| RAM | 8GB DDR4 |
| Storage | 128 GB |
| Touch Technology | Ultra Fine Touch Technology |
| Touch Points | 40 points touch |
| HDMI | HDMI-IN 2.0 x 3 (3840x2160 @60Hz) |
| RGB / VGA | x1 |
| Audio | x1 |
| RS232 | x1 |
| OPS | x1 (Optional Intel Standard OPS) |
| WiFi | x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050) |
| HDMI Output | HDMI 2.0 x1 |
| Audio Output | x1 |
| SPDIF | x1 |
| LAN RJ45 | x2 |
| USB Type A | USB3.0 x4 (Front x2, Rear x2); USB2.0 x1 |
| USB Type B | x2 (Front x1, Rear x1) |
| USB Type C | Front x1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing) |
| Speakers | 16W x 2 |
| Top Camera Plate | Yes |
| Embedded OS | Android 11 (Upgradeable to 13) |
| Bundle Software | Basic Annotation Software: myViewBoard Whiteboard; Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC); Wireless Presentation: myViewBoard Display; Wireless Presentation with Touch Feedback: Viewboard Cast: Yes |
| Special Features | All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front "SmartPort™ USB" to all channels; Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC; Light Sensor: Yes |
| Power Voltage | 100-240V AC |
| Power Consumption | 106W; Off: ≤ 0.5W |
| Wall Mount (VESA®) | 800x400 |
| Operating Temperature (º C) | 0°C to 40°C |
| Humidity | 20% ~ 80% RH non-condensing |
| Dimensions (W x H x D) | Physical (inch / mm): 1709 x 1020 x 88 mm / 67.3 x 40.2 x 3.5 in; Packaging (inch / mm): 1863 x 1140 x 225 mm / 73.3 x 44.9 x 8.6 in |
| Weight | Net (lb / kg): 104.3lb/47.3kg; Gross (lb / kg): 133.5lb/60.55kg |
| Regulations | FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI, BIS |
| Package Contents | 1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m |
| Compatible Slot-in PC | VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16 |
