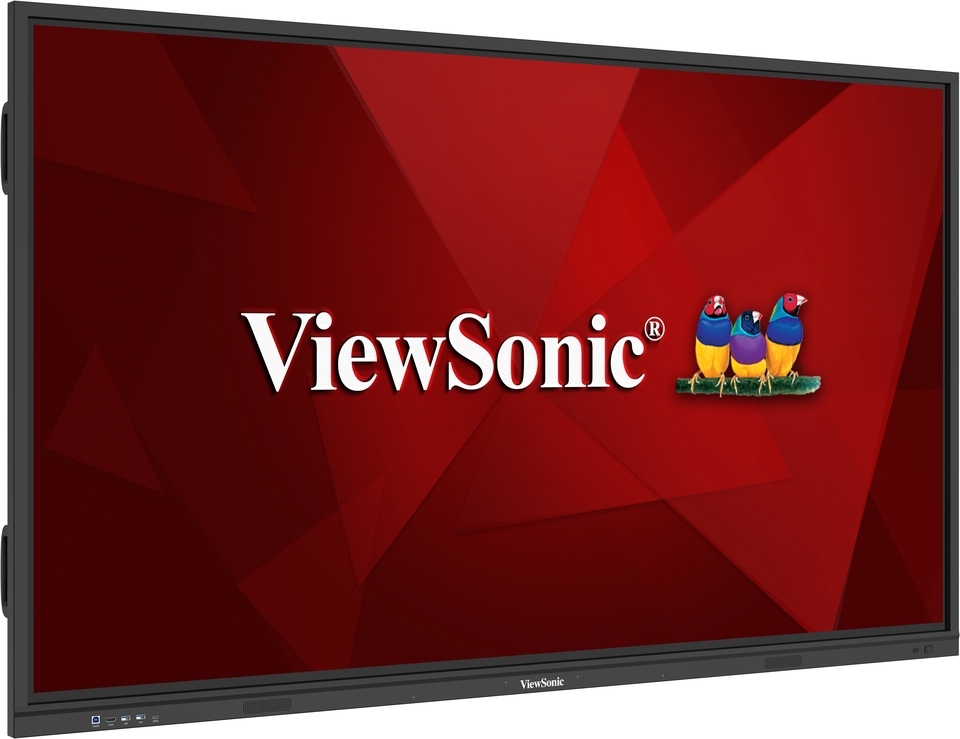

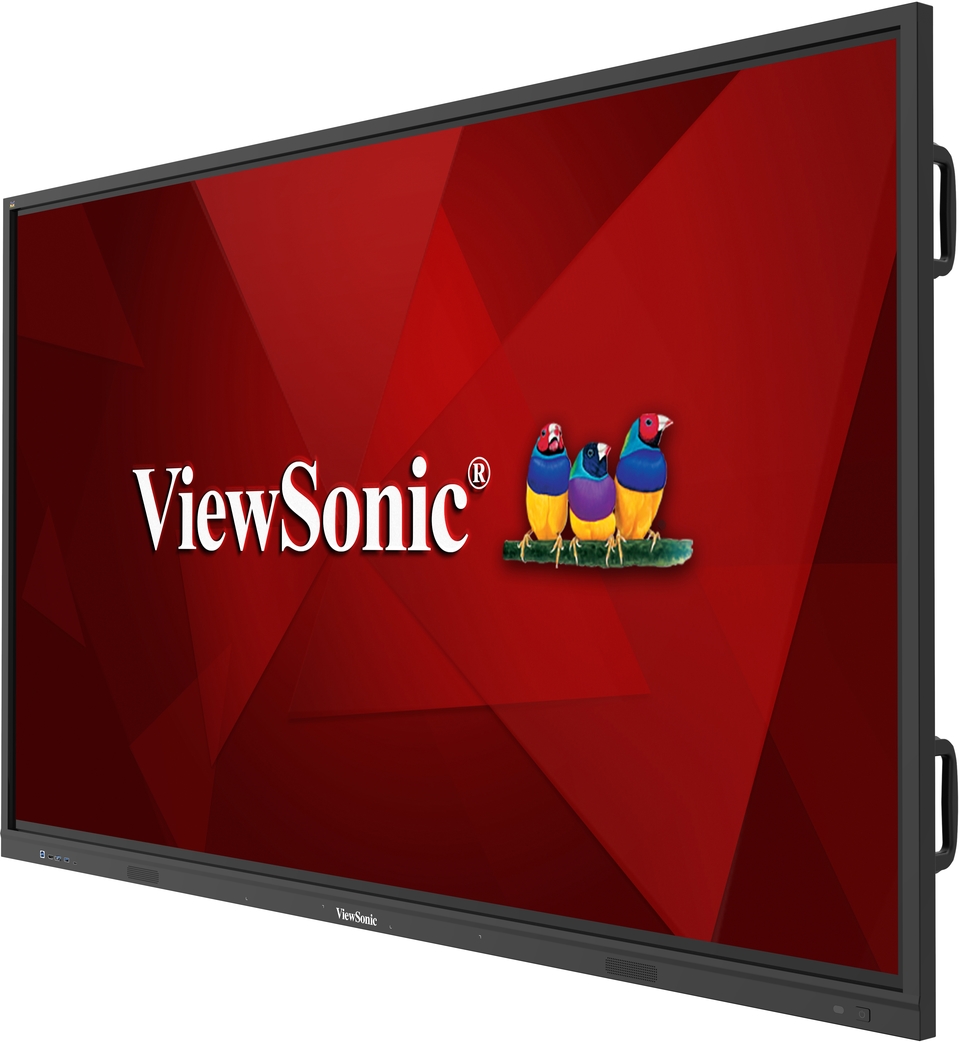

The ViewBoard IN 7502 is an advanced interactive flat panel that delivers exceptional image quality in 4K UHD resolution, powered by Android 14 (EDLA) for a seamless and responsive user experience.
With its 40-point touchscreen interface and Ultra Fine Touch Technology, this panel enables effortless collaboration in educational settings. The 9H hardness anti-glare coating ensures durability and reduces reflections, while powerful 20W x 2 speakers deliver immersive audio for an enhanced learning experience.
* Price excludes taxes, shipping, installation, setup, service fees, and additional charges. Contact sales for a customized quote.
A state-of-the-art interactive flat panel designed for modern educational institutions, featuring advanced technology for interactive and engaging learning experiences.
Latest Android operating system with EDLA certification
Crystal clear 3840x2160 pixels display
40-point touch for seamless collaboration
20W x 2 front-facing speakers for immersive audio
DDR4 memory for smooth multitasking
Ample space for apps and content
Powerful performance for all applications
9H hardness for durability and reduced reflections
| Panel Size | 75" |
| Panel Type | TFT LCD Module with DLED Backlight |
| Display Area (mm) | 1649.664(H) × 927.936(V) |
| Aspect Ratio | 16:9 |
| Resolution | UHD 3840x2160(Pixels) |
| Colors | 1.07B colors |
| Brightness | 450 nits |
| Contrast Ratio | 5000:1 |
| Response Time | 8ms |
| Viewing Angles | H=178, V=178 |
| Backlight Life | 50,000 Hours |
| Surface Treatment | Hardness: 9H Anti-glare coating |
| Orientation | Landscape |
| Processor | Quad-core |
| RAM | 8GB DDR4 |
| Storage | 128GB |
| Touch Technology | Ultra Fine Touch Technology |
| Touch Points | Windows: 40, Android: 40 |
| HDMI | x2 (Frontx1:HDMI2.0 with CEC; Rearx1:HDMI2.0 with CEC, ARC) |
| RGB / VGA | x1 |
| Audio Input | x1 |
| RS232 | x1 |
| SD/SDHC | x1 |
| OPS | x1 (Optional Intel Standard OPS) |
| WiFi | x1 (Built-in) |
| Audio Output | x1 |
| SPDIF | x1 |
| LAN RJ45 | x2 |
| USB Type A | USB3.0: Front x2, USB2.0: Rear x3 (smart port USB x2 + System x1) |
| USB Type B | USB 2.0: Front x1, Rear x1 |
| USB Type C | USB 2.0 x2 (Front x1 + PD 15W, Rear x1) |
| Speakers | 20W x 2 |
| Voltage | 100-240V AC |
| Consumption | On: 180W (Normal); Off: <0.5W |
| Wall Mount (VESA®) | 600*400 |
| Temperature (º C) | 0°C to 40°C |
| Humidity | 20% ~ 80% RH non-condensing |
| Physical Dimensions (inch / mm) | 1715.6x1032.9x93.5 (mm) / 67.54x40.67x3.69(in) |
| Packaging Dimensions (inch / mm) | 1821x1140x129 (mm) / 71.69x44.88x6.65(in) |
| Net Weight | 46.0kg / 101.41lb |
| Gross Weight | 54.2kg / 119.49lb |
| Regulations | BIS |
| Package Contents |
1. 3m power India power plug x 1 2. 3m HDMI cable x 1 3. 3m Touch USB cable (USB2.0) x 1 4. Touch pen x 2 5. Remote control x 1 6. AAA battery x 2 7. Quick Start Guide with Compliance statement 8. Screw x 4 (wall mount M8*25mm) |
| Compatible Slot-in PC | VPCF5-W55-G1 / VPC37-W53-G1 / VPC35-W53-G1 |
